Quad Artera Pre Analogue Preamplifier

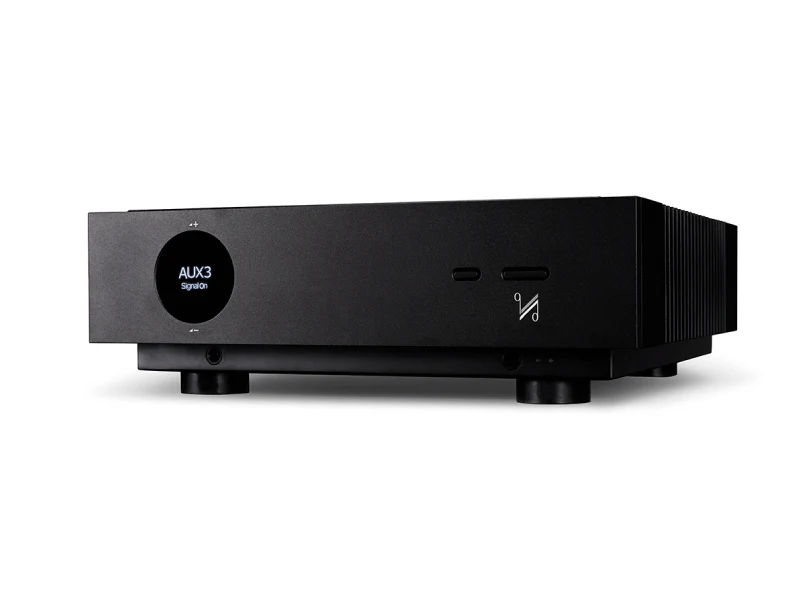

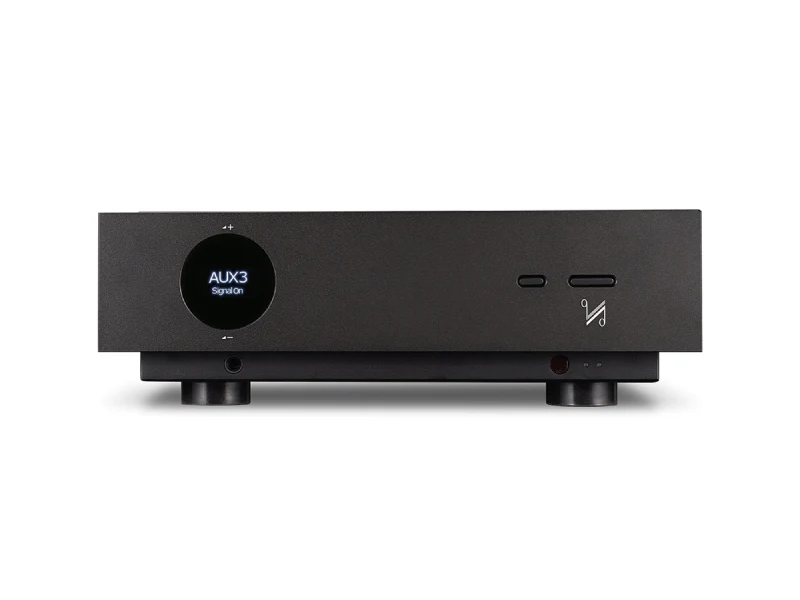

The QUAD Artera Pre the latest addition to to the Quad Artera range, it is a pure analogue pre-ampliïŹer, combining the Artera design with the QUAD sound signature traditions, characterised by the pure analogue signal. The Artera Pre mixes minimalist design with high-quality components to ensure short, direct signal paths that preserve sonic purity, making this a perfect partner for the Artera Stereo Power Amplifier.
Specifications

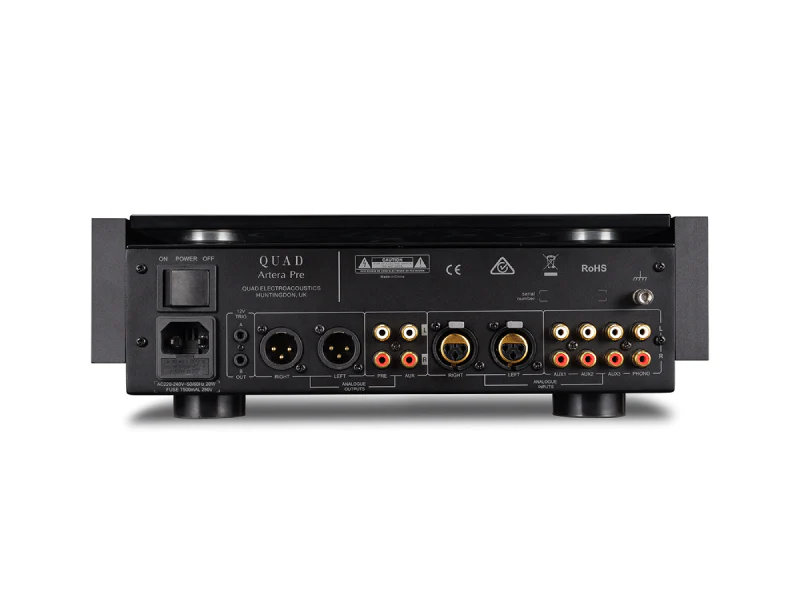

| Analogue Inputs: | 3 x RCA (AUX1, 2 & 3), XLR, Phono MM/MC |
| Analogue Outputs: | 1 x RCA (PRE OUT), 1 x RCA(AUX), 1 x XLR,1 x 6.35mm Headphone Jack |
| Gain: (max.) , Volume = 100 | +8dB (Line/XLR) |
| +53.5dB (Phono MM) | |
| +73.5dB (Phono MC) | |
| Input Sensitivity: (Vol = 84, Vout = 0dBu) | 775mV (Line/XLR) |
| 4.1mV (Phono MM) | |
| 410uV (Phono MC) | |
| Input Impedance: | 10K (Line/XLR) |
| 47K//100pF (Phono MM) | |
| 100R//1.7nF (Phono MC) | |
| Max. Output Level: (THD < 0.1%) | 2.3Vrms (RCA) |
| 4.6Vrms (XLR) | |
| Input Headroom: (THD < 0.1% , Vol = 50) | 4.1Vrms (RCA) |
| 8.2Vrms (XLR) | |
| 62mV (Phono MM) / 6.2mV (Phono MC) @ 1kHz | |
| Frequency Response: | 20Hz-20kHz (± 0.2dB) |
| Total Harmonic Distortion: | <0.002% (20Hz-20kHz) |
| S/N Ratio: (Vout = 0dBu) | >110dB(A) (Line/XLR) |
| >80dB(A) (Phono MM) | |
| >76dB(A) (Phono MC) | |
| Channel Separation: | >100dB (10kHz) |
| Output Impedance: | 120 Ohms (RCA) 100 Ohms (XLR) |
| Standby Consumption: | <0.5W |
| AC Mains Supply Requirement: (Factory set) | 230V ~ 50-60Hz |
| 115V ~ 50-60Hz | |
| 100V ~ 50-60Hz | |
| Dimensions: (WĂDĂH) | 320 x 320 x 105mm |
| Net Weight: | 7.8kg |
Original: $1,461.99
-70%$1,461.99
$438.60Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The QUAD Artera Pre the latest addition to to the Quad Artera range, it is a pure analogue pre-ampliïŹer, combining the Artera design with the QUAD sound signature traditions, characterised by the pure analogue signal. The Artera Pre mixes minimalist design with high-quality components to ensure short, direct signal paths that preserve sonic purity, making this a perfect partner for the Artera Stereo Power Amplifier.
Specifications
| Analogue Inputs: | 3 x RCA (AUX1, 2 & 3), XLR, Phono MM/MC |
| Analogue Outputs: | 1 x RCA (PRE OUT), 1 x RCA(AUX), 1 x XLR,1 x 6.35mm Headphone Jack |
| Gain: (max.) , Volume = 100 | +8dB (Line/XLR) |
| +53.5dB (Phono MM) | |
| +73.5dB (Phono MC) | |
| Input Sensitivity: (Vol = 84, Vout = 0dBu) | 775mV (Line/XLR) |
| 4.1mV (Phono MM) | |
| 410uV (Phono MC) | |
| Input Impedance: | 10K (Line/XLR) |
| 47K//100pF (Phono MM) | |
| 100R//1.7nF (Phono MC) | |
| Max. Output Level: (THD < 0.1%) | 2.3Vrms (RCA) |
| 4.6Vrms (XLR) | |
| Input Headroom: (THD < 0.1% , Vol = 50) | 4.1Vrms (RCA) |
| 8.2Vrms (XLR) | |
| 62mV (Phono MM) / 6.2mV (Phono MC) @ 1kHz | |
| Frequency Response: | 20Hz-20kHz (± 0.2dB) |
| Total Harmonic Distortion: | <0.002% (20Hz-20kHz) |
| S/N Ratio: (Vout = 0dBu) | >110dB(A) (Line/XLR) |
| >80dB(A) (Phono MM) | |
| >76dB(A) (Phono MC) | |
| Channel Separation: | >100dB (10kHz) |
| Output Impedance: | 120 Ohms (RCA) 100 Ohms (XLR) |
| Standby Consumption: | <0.5W |
| AC Mains Supply Requirement: (Factory set) | 230V ~ 50-60Hz |
| 115V ~ 50-60Hz | |
| 100V ~ 50-60Hz | |
| Dimensions: (WĂDĂH) | 320 x 320 x 105mm |
| Net Weight: | 7.8kg |
